Sparck Moto



Custom Wiring Harness

Custom Wiring Harness

Custom made wiring harnesses for your motorcycle. Please click here see our dedicated harness page for additional details.

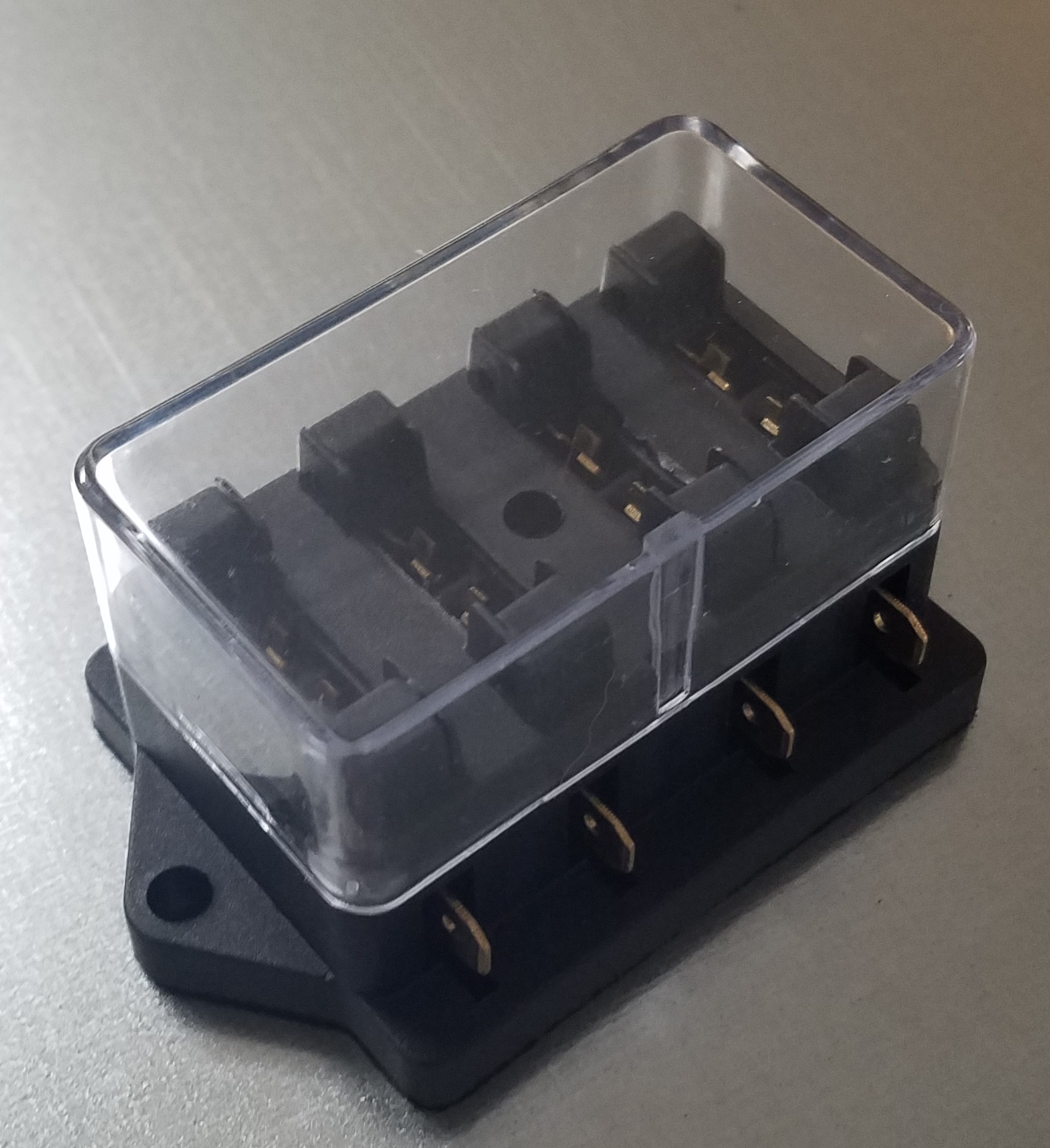

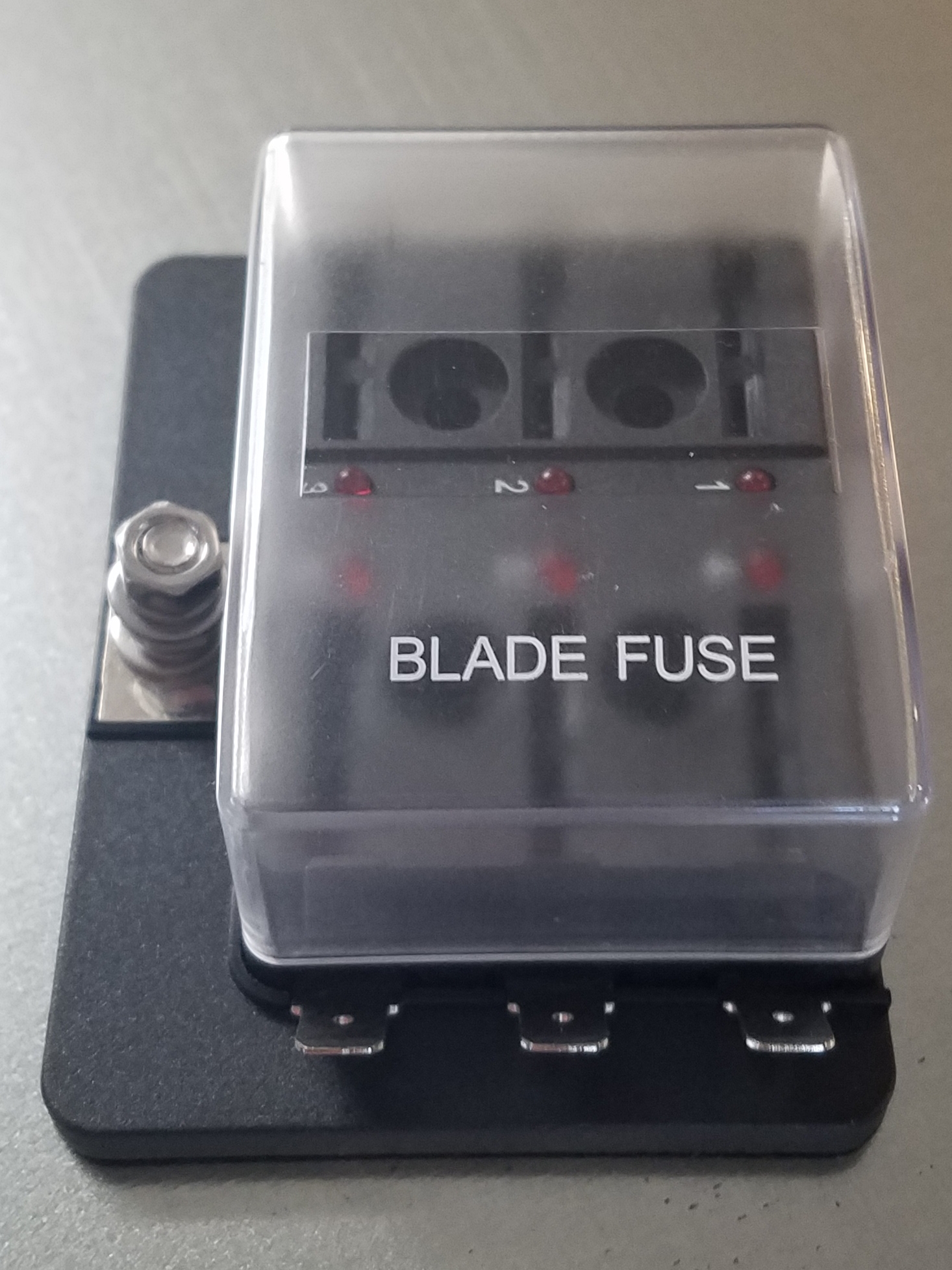

FB-11 Fuse Box

FB-11 Fuse Box

This "semi-intelligent" fuse box is a universal part, intended for use in all vintage motorcycles. The fuse box is good for a maximum total current load of 25A, but we recommend keeping it at 20A or less. This is inline with almost anything made before 1980 and quite a few bikes even into the 90s.

The FB-11 has 11 separate power connections, across nine circuits. Three of the connections are always on and protected by the off-board main fuse (optional extra) as part of a single circuit. These connections will remain on even if the ignition switch is off. This is useful for battery tenders, some types of digital gauges, and RFID locking kits.

Includes full instructions and schematic.

12V Single Phase Regulator/Rectifier

12V Single Phase Regulator/Rectifier

Specifically designed and engineered for Sparck Moto, our single phase regulator/rectifier is designed to modernize your 12V permanent magnet charging system up to 180W. Acceptable for use with both lead acid and lithium ion batteries and fits the following machines:
  • All Honda singles and twins through 1978
  • Most pre-1970 British twins (either positive or negative ground, replaces rectifier and zener diode)
  • Most Kawasaki models with two yellow alternator wires
  • Most Suzuki T and GT two strokes with two cylinders

Comes pre-wired and will plug-and-play with most Honda twins. Includes hardware for other applications.

Wire colors:
Yellow - AC from alternator
Pink - AC from alternator
Green - Ground
Red - Battery positive terminal
Black - Voltage sensing. +12V when ignition switch on.

12V Three Phase Regulator / Rectifier

12V Three Phase Regulator / Rectifier

Built to the same specifications as our popular single phase model, this regulator/rectifier works on almost all motorcycles with a three phase permanent magnet alternator.

This includes almost all of the Honda twins and singles made on or after 1978, almost all of the Suzuki GS models, and many Kawasaki and Yamaha models as well.

Includes matching connectors and terminals for a brand new installation.

If you're unsure if this regulator/rectifier will fit your bike, please email us at support@sparckmoto.com and we'll get back to you (usually within 24 hours).

Wire colors are as follows:
Yellow - AC from alternator
Green - Ground
Red - Directly to battery positive terminal
Black - Switched power (should have power whenever bike is turned on, but no power when bike is off)

Honda CB/CL 360 Cam Chain Tensioner Set

Honda CB/CL 360 Cam Chain Tensioner Set

This cam chain tensioner set was specifically produced for Sparck Moto and is intended to replace the worn cam chain tensioners (both guide and slipper) in your Honda 360 engine.

These tensioner sets were modeled after the post-recall part numbers of 14520369010 and 14611369000 and fits all Honda 360 engines sold between 1974 and 1977.

Like all aftermarket parts, the end user assumes liability for their use.

12V 3 Phase Regulator/Rectifier

12V 3 Phase Regulator/Rectifier

Suitable for use in all four cylinder Hondas made before 1979.

Acceptable for use with all battery types.

Can also be used on some models of Yamaha and Kawisaki (with some wiring changes). Email us at info@sparckmoto.com if you're unsure if this will work on your bike.

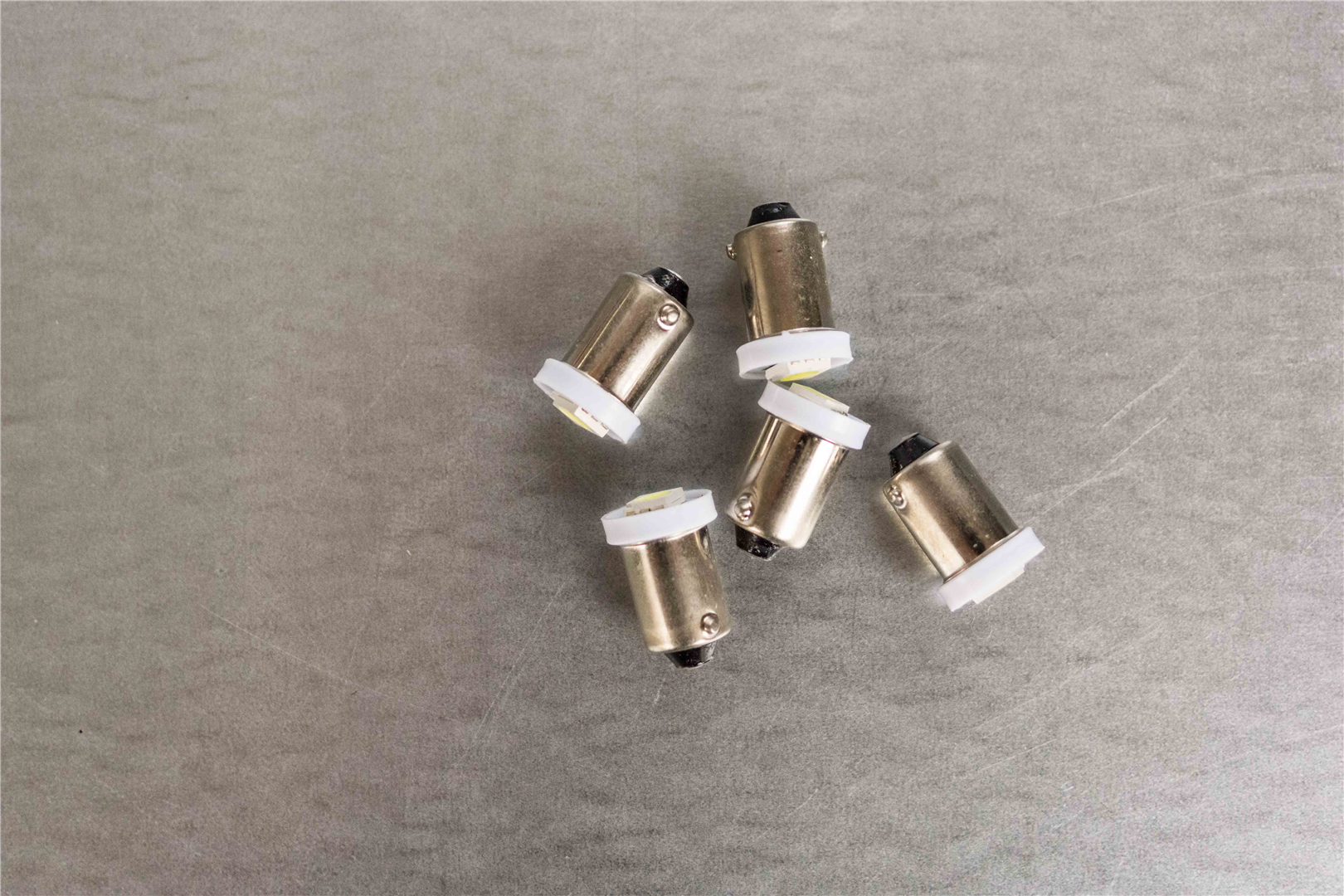

5x BA9s LED Gauge Light

5x BA9s LED Gauge Light

A five pack of 12V LED gauge lights. Suitable for most bikes. White light is brighter than stock, can last up to 20 years, and draws only a single Watt. Base is 9mm in diameter and 14.5mm in total length.

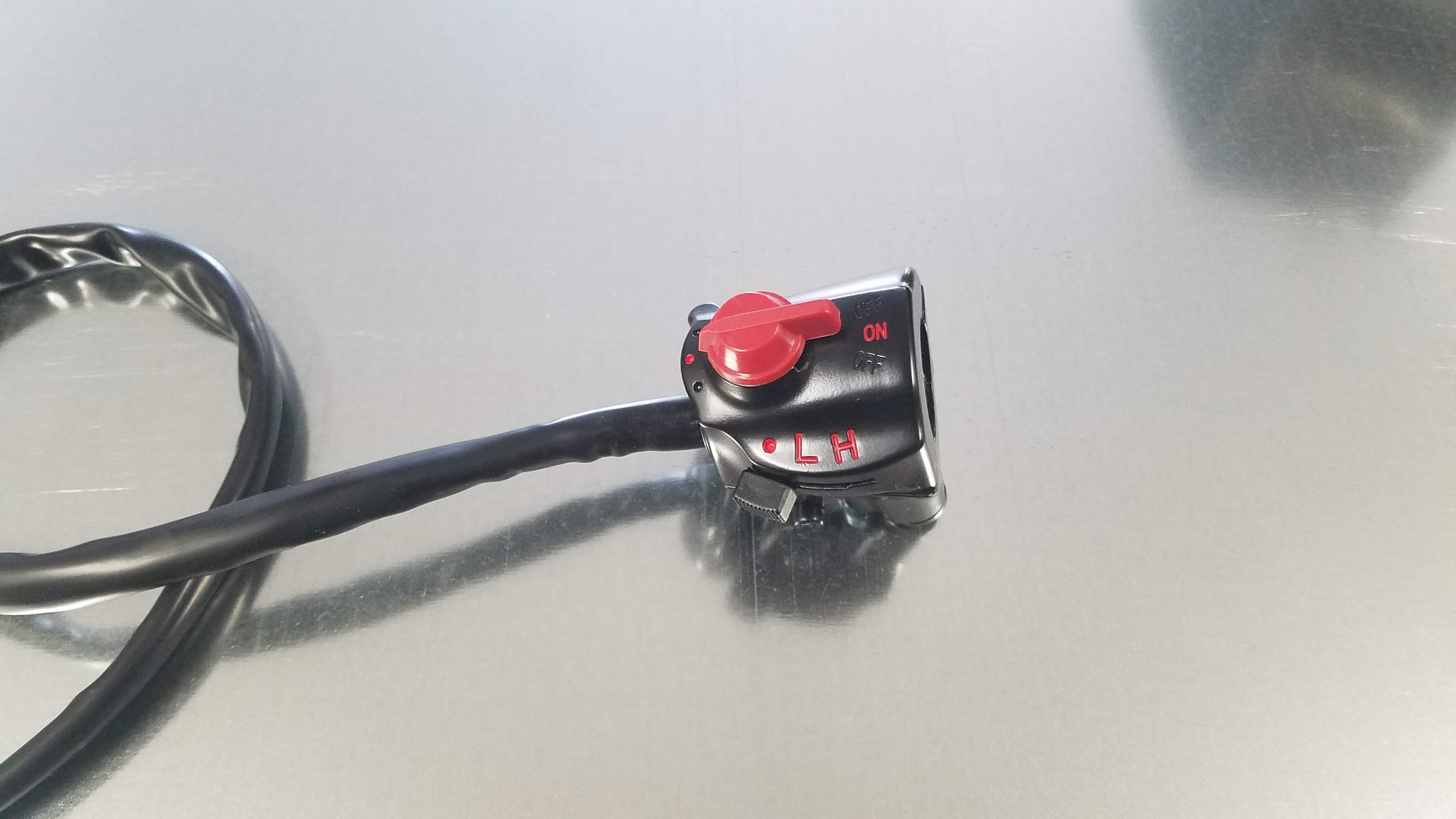

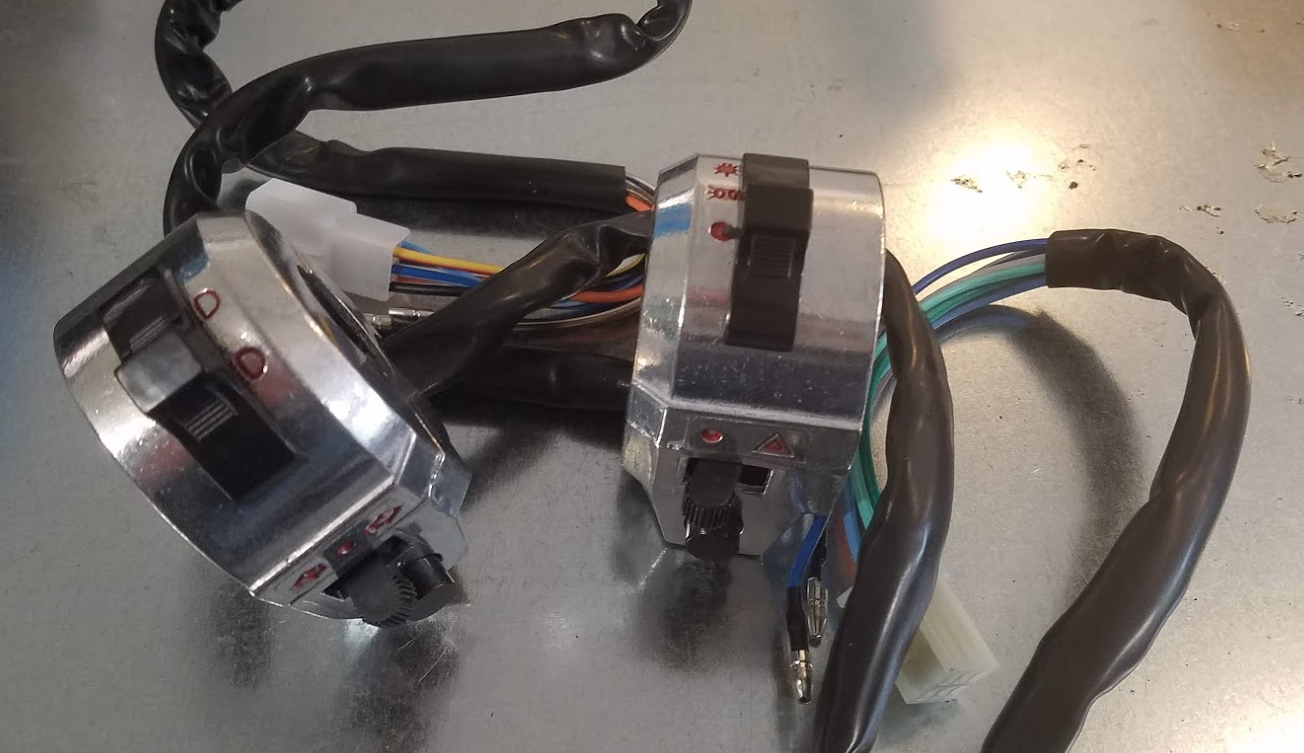

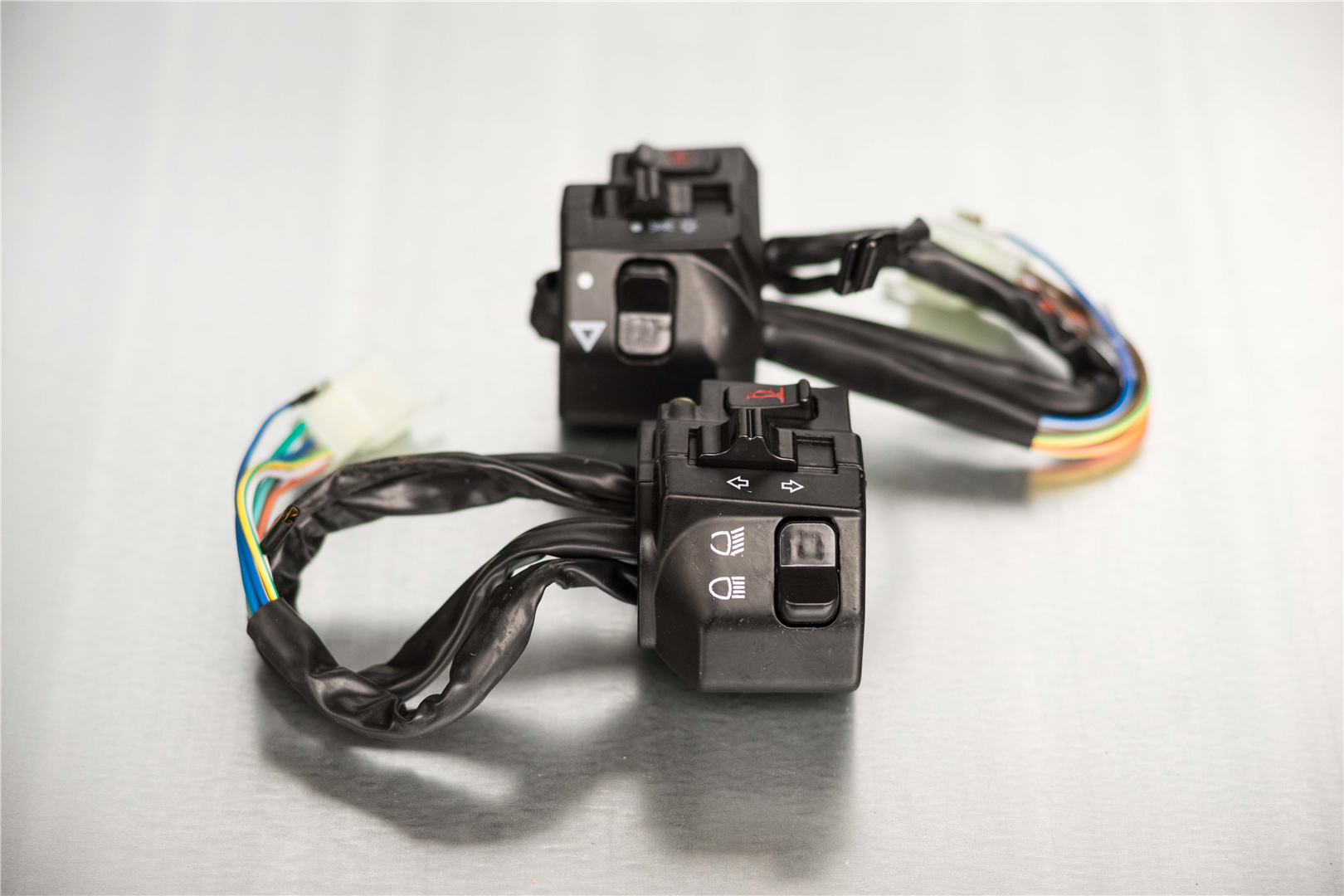

7/8" Bar Controls - Left and Right

7/8" Bar Controls - Left and Right

High quality aluminum bar controls, equipped with 18 gauge wire in OEM Honda colors. Designed to fit 7/8" handlebars, these lightweight controls will replace your old, worn out setup while helping to maintain a classic OEM look.

Left side control is wired for horn, turn signals, dimmer switch, and clutch switch (clutch switch wires are removable if use is not desired).

Right side control is setup for electric starter, lighting (on, off, and parking light), brake switch (removable if not being used), and a toggle switch that can be used for either hazard lights or a kill switch.

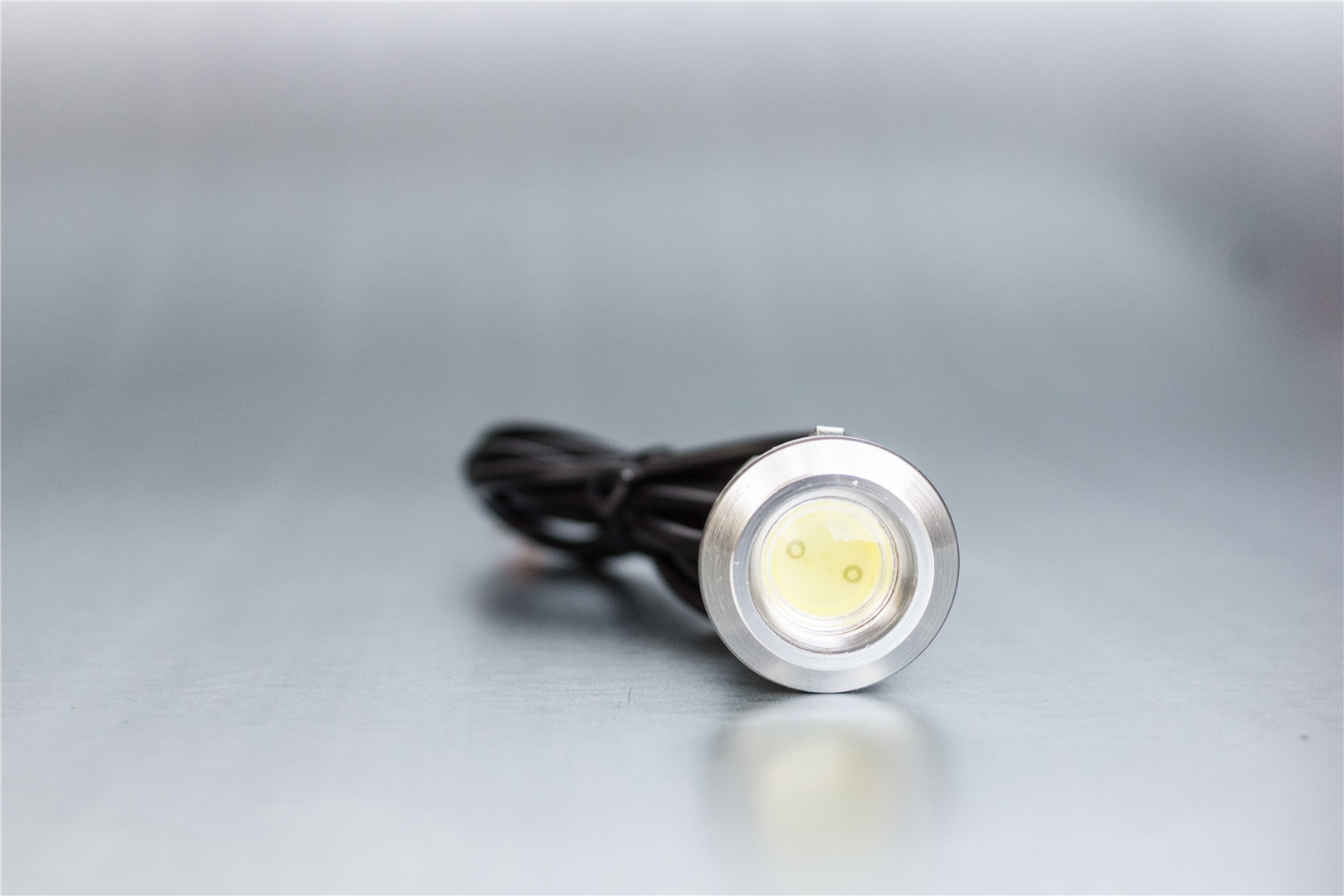

3W LED Accent Light

3W LED Accent Light

This high powered LED projects usable light up to 30 feet. A solid aluminum body, with mounting clips, makes it easy to add into almost any location. The built in projector spreads light over a 90° angle and the unit is approximately one inch (24mm) in diameter.

6v to 12v Step Up Converter

6v to 12v Step Up Converter

This converter easily allows you to swap your 6v bulbs over to 12V bulbs on all your DC lighting systems.

Can handle up to 10A of current, allowing for a full conversion of all your lighting without having to tinker with the alternator or regulator/rectifier.

Not recommended for conversions of points ignition systems.

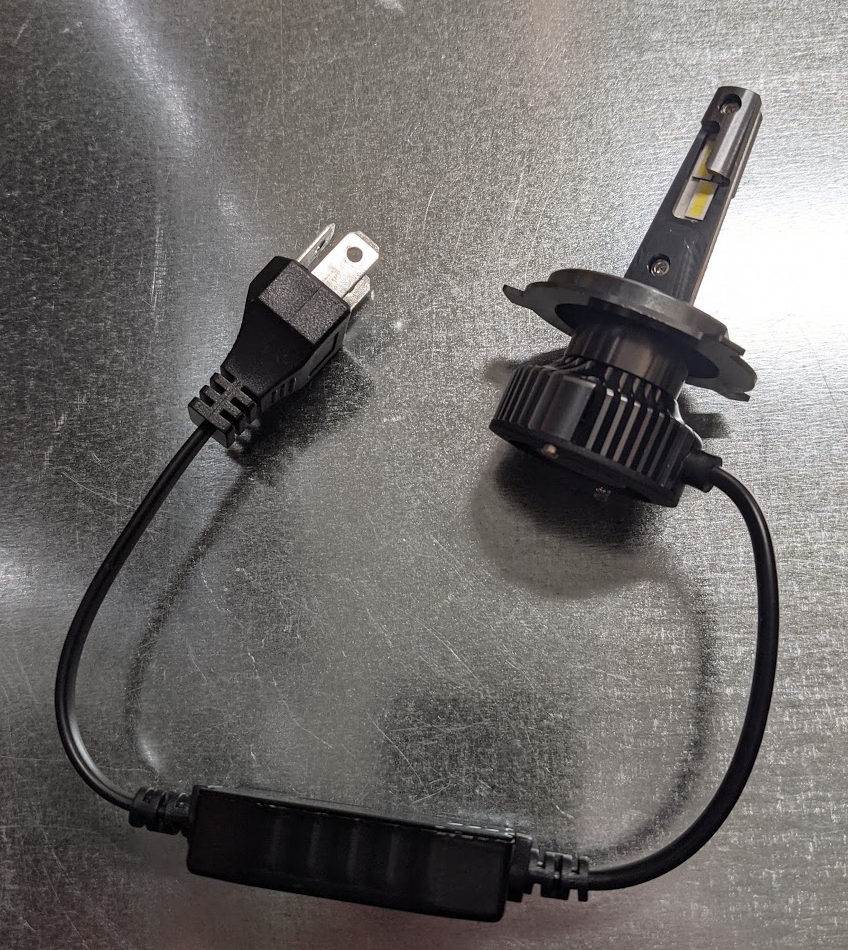

20W H4 LED Headlight Bulb

20W H4 LED Headlight Bulb

A must have upgrade for our old bikes. This LED headlight bulb draws only 20W of power while shining brighter than most 55W Halogen bulbs. It plugs directly into existing H4 connectors.

No active fan as a failure point. Good for around 10,000 hours of use.

2x BA15S LED Bulbs "Single Filament"

2x BA15S LED Bulbs "Single Filament"

These 12V replacements for your BA15S bulbs will draw less power than your stock turn signal bulbs as well as being brighter.

Keep the stock look with modern parts!

Sold in pairs, only.

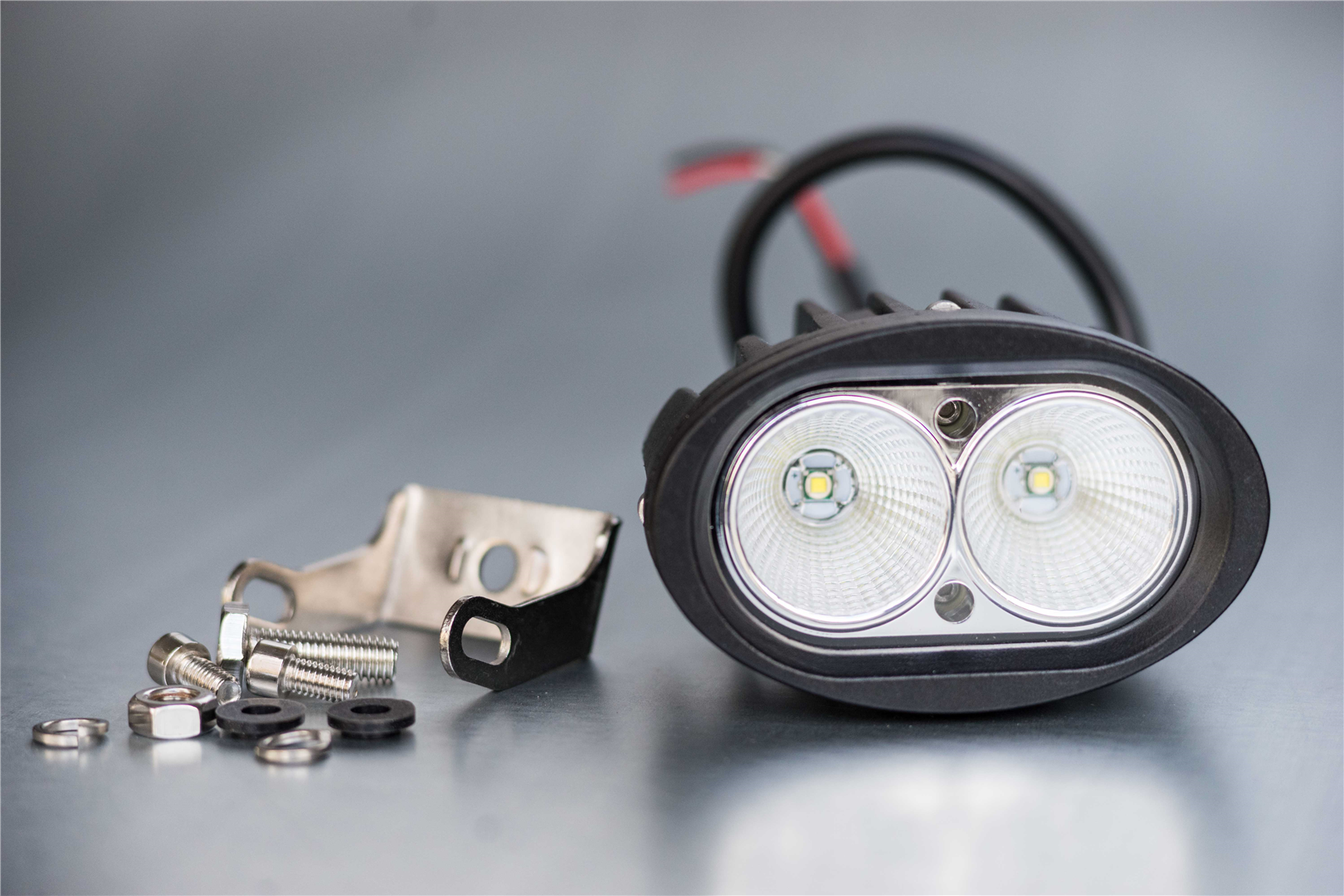

Auxiliary LED Light

Auxiliary LED Light

This 20W LED auxiliary light is perfect for when you need some additional lighting. It can be easily wired into existing systems and draws just over an amp of power.

Two high-powered LEDs provide a 60° beam of light up to 100 feet away. Two of these lights provide enough power to be used as a headlight, if so desired.

Mounting hardware and brackets are included.

1x 12V LED BA15D "Dual Filament"

1x 12V LED BA15D "Dual Filament"

The dual filament version of our 12V BA15 LED bulbs. Useful for replacing bulbs on front turn signals that also double as running lights and can also be used for setups that make use of a dual filament bulb for the tail light.

Fits most bikes from the 70s, on.

Sold singly.

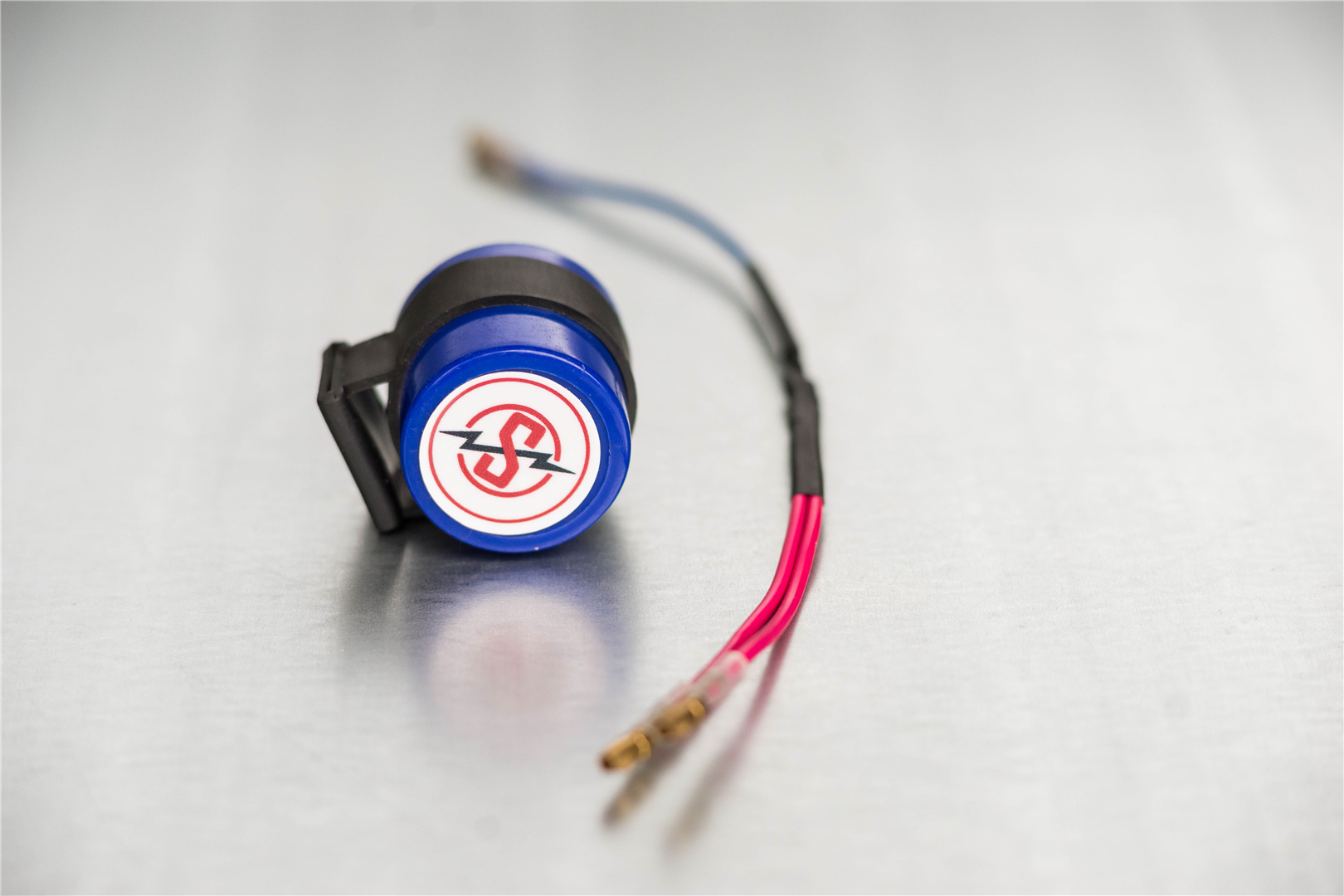

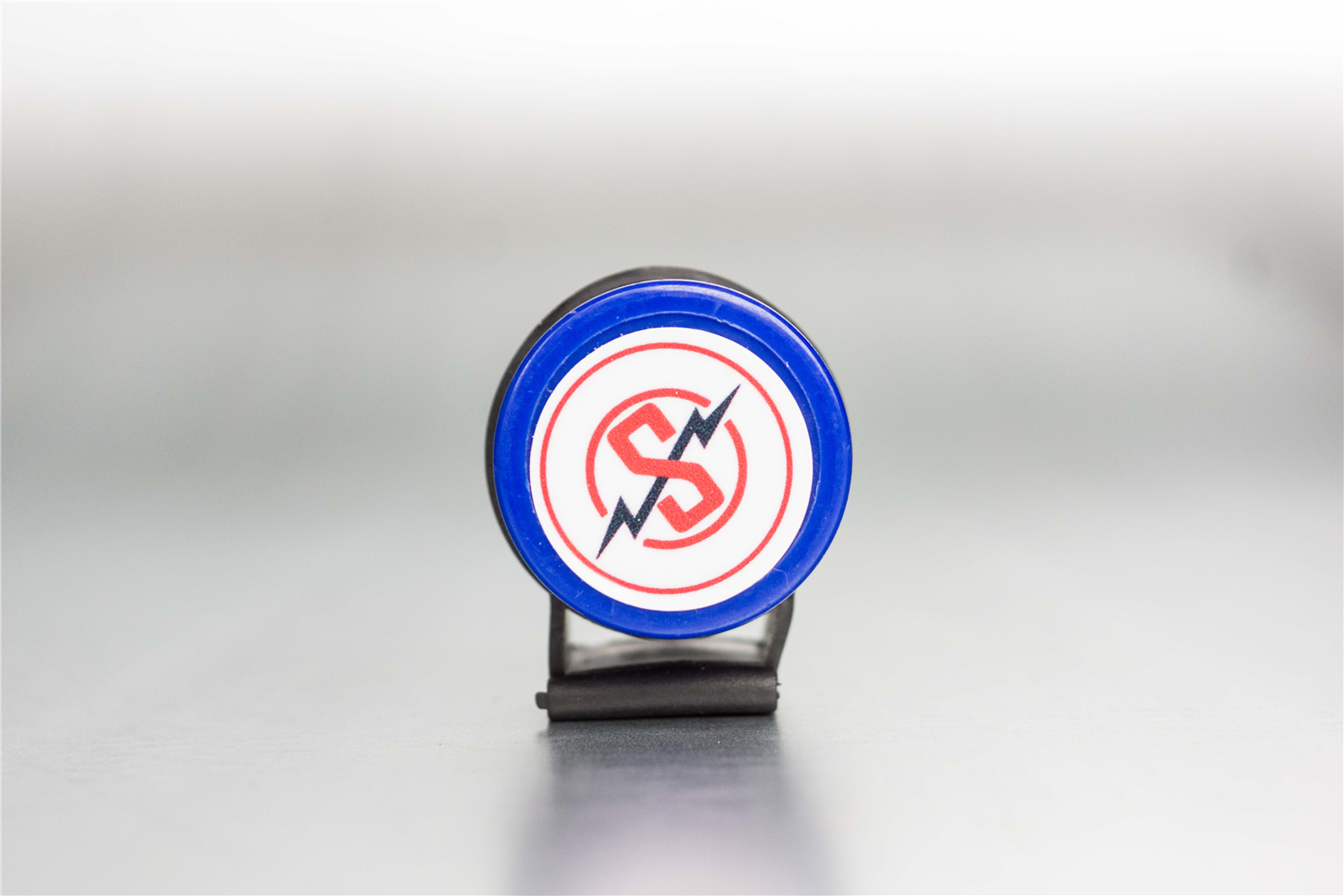

Universal Flasher Relay

Universal Flasher Relay

Our two pin flasher relay is truly universal!

Suitable for 6V or 12V systems and fully functional with LED or standard incandescent bulbs.

Possibly the last flasher relay your bike will ever need.

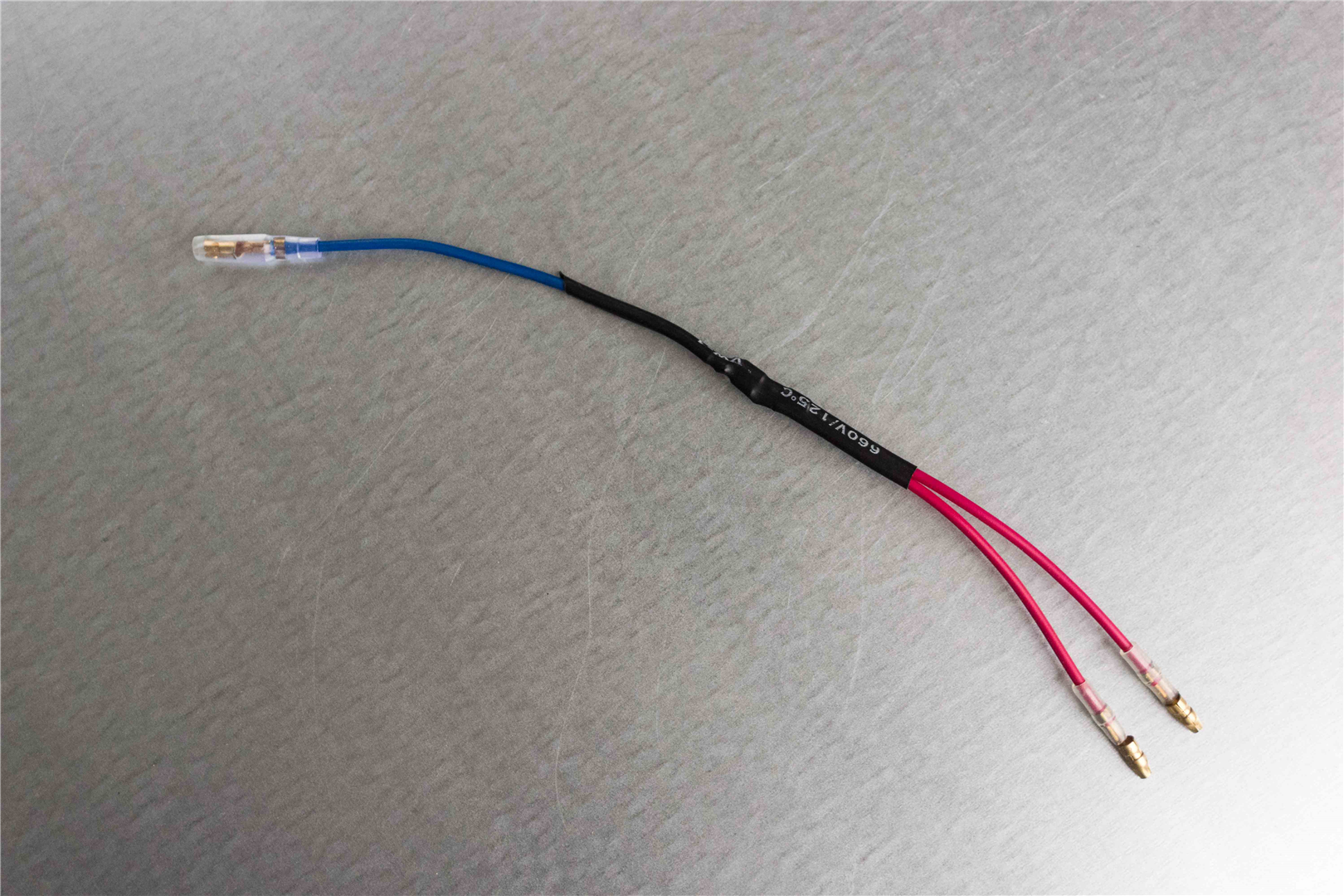

LED Diode Kit

LED Diode Kit

This LED diode kit allows you to start swapping over your old incandescent bulbs to newer and more efficient LEDs.

This kit is a must-have if you're swapping to LED turn signals and only have one dashboard indicator light. It's also necessary if you're swapping your dashboard light to LED.

Each of the male connectors go to each turn signal wire and the female connector feeds power to your indicator dash light.

LED Flasher and Diode Pack

LED Flasher and Diode Pack

Combines our LED flasher relay and our diode kit into a single pack.

Saves you two bucks!

Sparck Moto Decal

Sparck Moto Decal

3" Sparck Moto decal, printed on UV resistant vinyl. The perfect addition to any tool box.

Free with purchase of $50 or more.

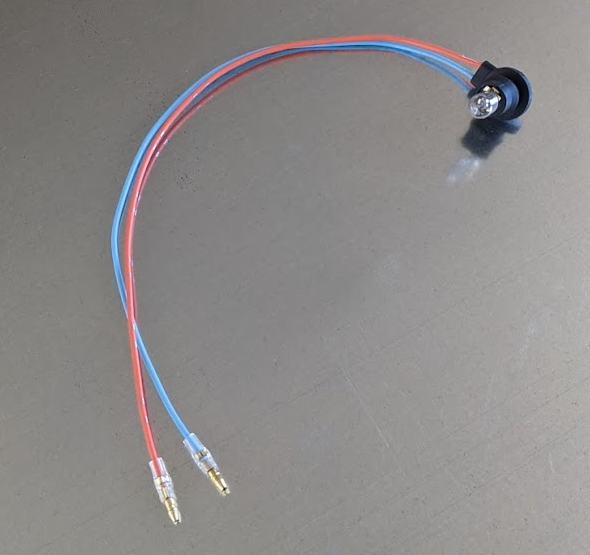

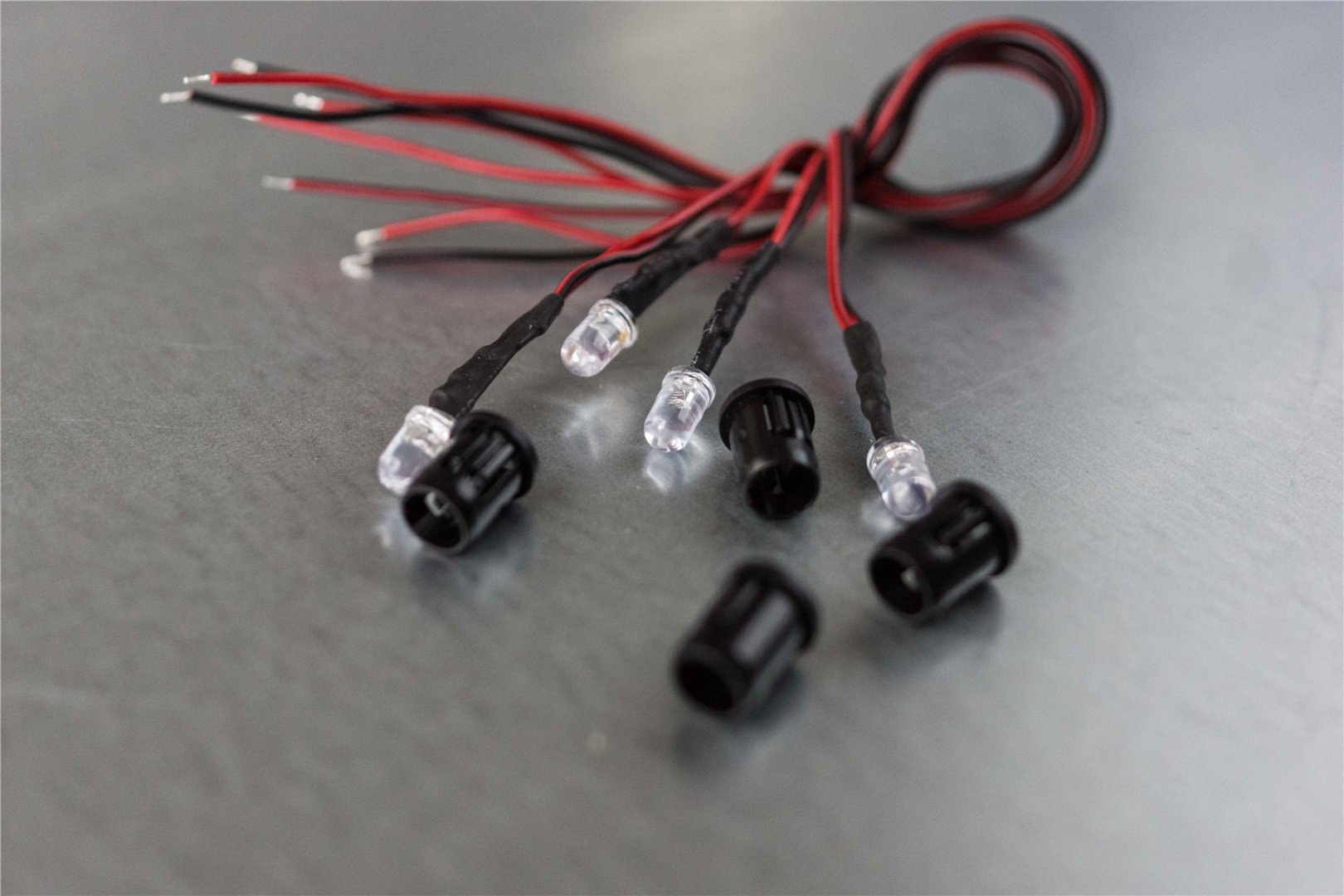

DIY LED Dash Lights

DIY LED Dash Lights

These component LEDs come in a pack of four (one blue, one green, one red, and one yellow) and are compatible with 12V systems.

Intended to be used by builders who are looking to create their own dashboard setups, these LEDs include a black plastic bezel so they can be mounted in sheet metal or even in the tops of triple trees.

Gear Shift Decal

Gear Shift Decal

These large font gear shift decals are the perfect addition to any of your vehicles. More subtle than "My other ride is...", these decals let you proclaim your two-wheeled passion with a wink and a smile.

The decals are cut from cast vinyl for extra longevity in the elements and each number measures approximately 1 and 7/8 inches in height (48mm).

Ignition Coil or Headlight Subharness

Ignition Coil or Headlight Subharness

Now available from Sparck Moto: Ignition Coil and Headlight Subharnesses. These standalone wiring kits allow a direct, fused, run from the battery to your ignition coil or headlight (or headlight switch). This cuts down on the total length of the wiring run and the total number of connections of these circuits when compared to stock. Shorter wiring and fewer connections means less resistance, which means more power. These subharnesses can increase the power of your spark or the brightness of your headlight, especially so with three Ohm coils or headlights 55W and above.
Compatible with all headlights and all Kettering (aka points) and TCI (aftermarket, too!) ignition systems.

Approximately four feet in total length.

Sparck Moto T-Shirt

Sparck Moto T-Shirt

Made and printed in the USA. Available in black, gray, or white.

Please specify size and color when ordering.
