Specifically designed and engineered for Sparck Moto, our single phase regulator/rectifier is designed to modernize your 12V permanent magnet charging system up to 180W. Acceptable for use with both lead acid and lithium ion batteries and fits the following machines:
- All Honda singles and twins through 1978
- Most pre-1970 British twins (either positive or negative ground, replaces rectifier and zener diode)
- Most Kawasaki models with two yellow alternator wires
- Most Suzuki T and GT two strokes with two cylinders

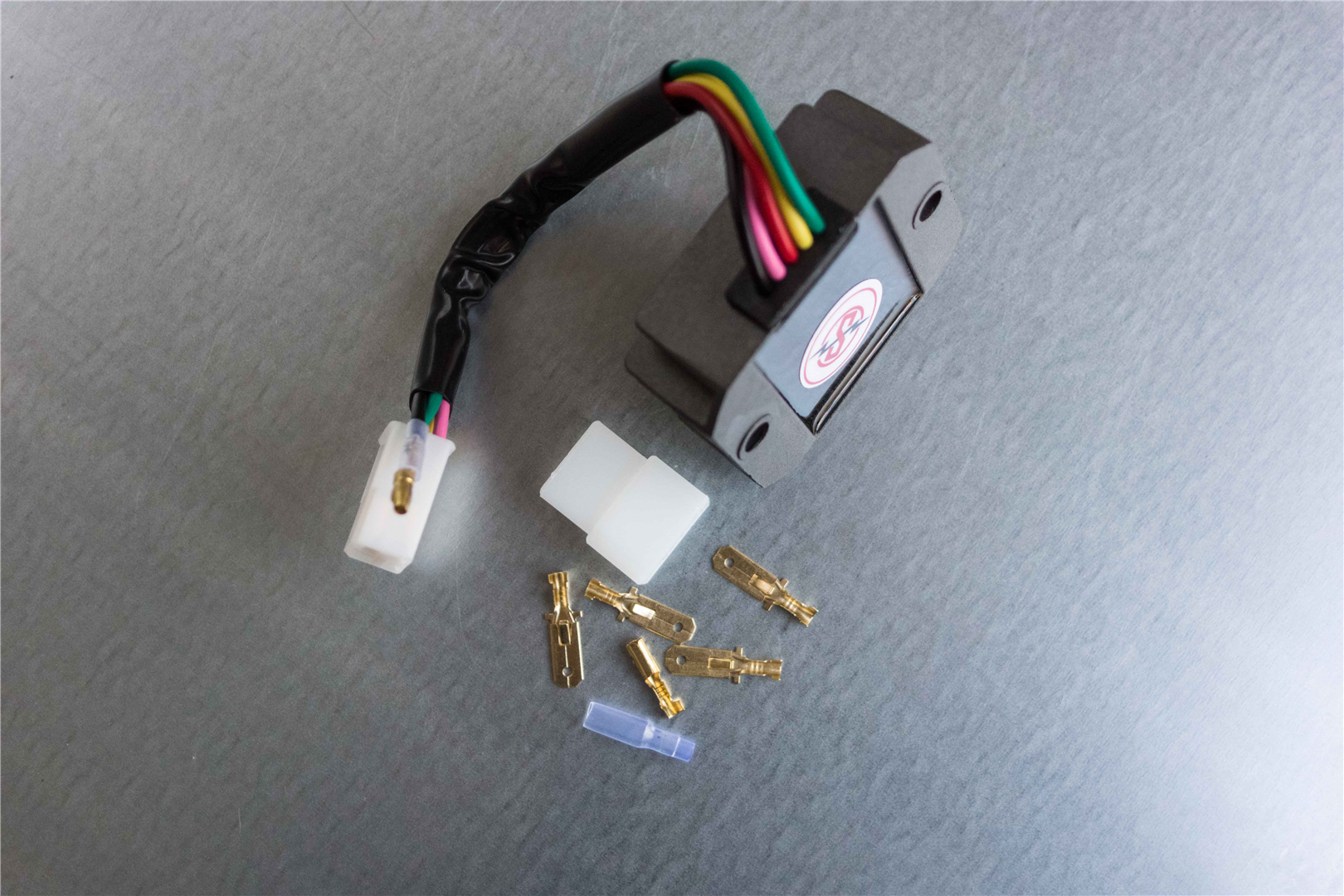

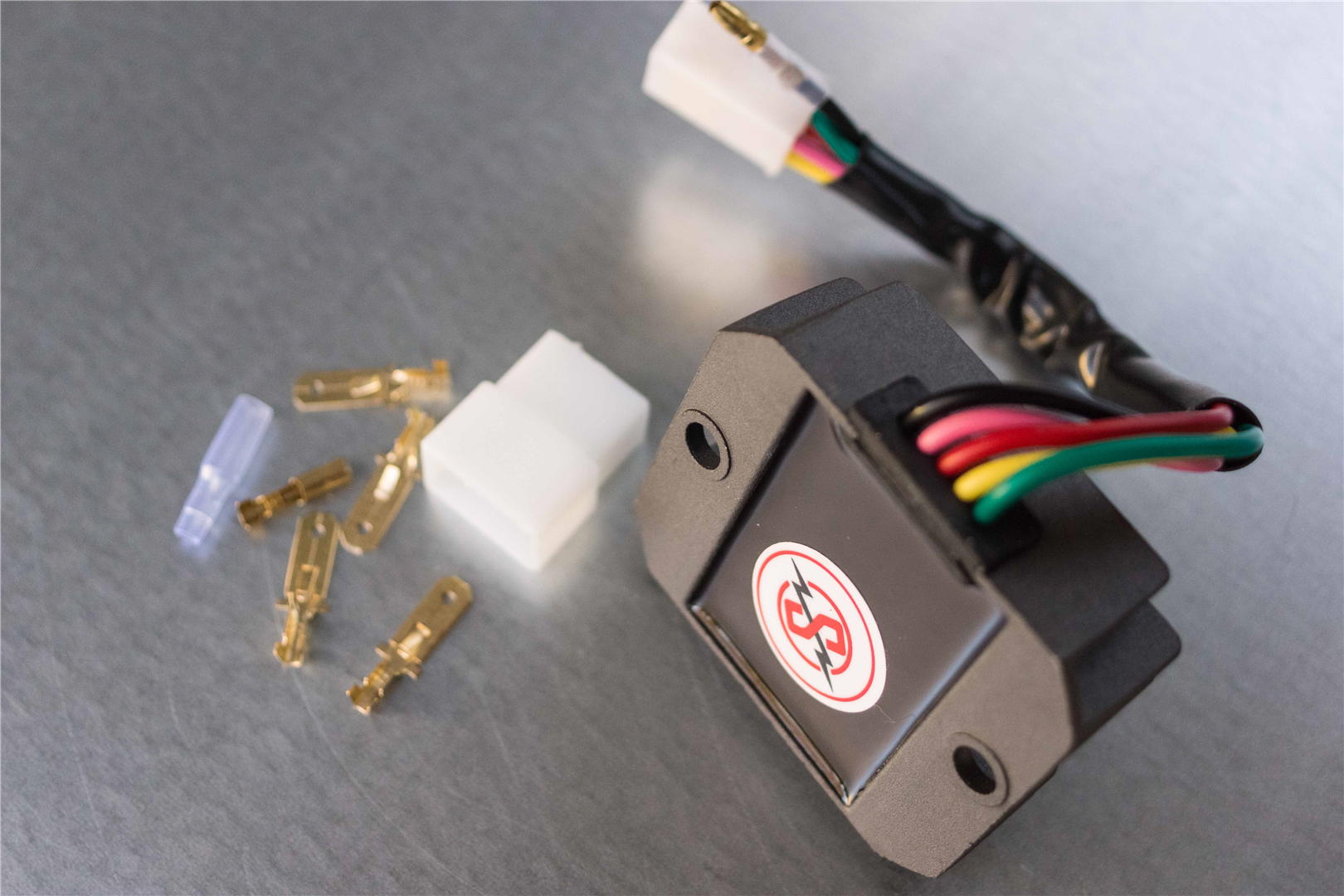

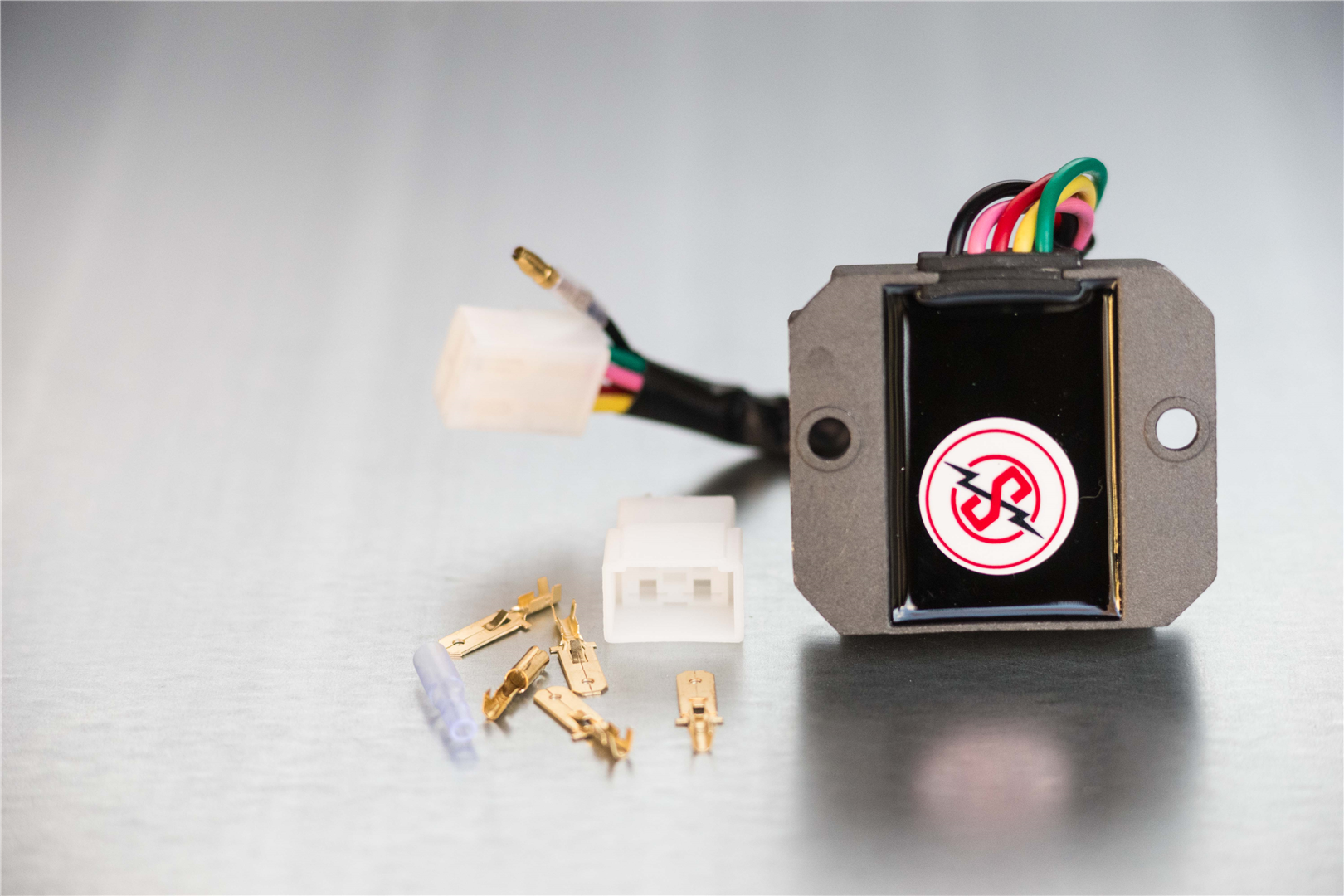

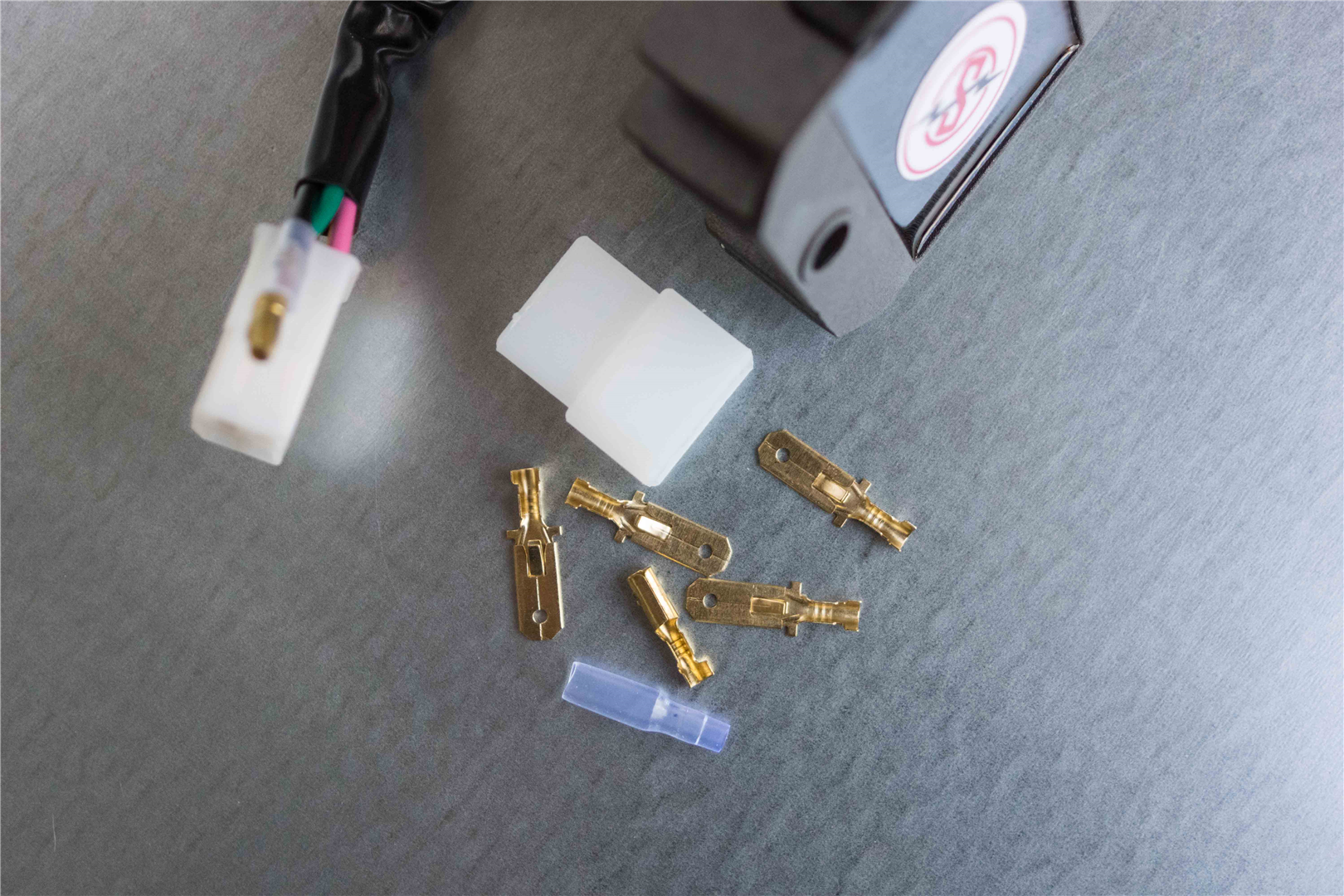

Comes pre-wired and will plug-and-play with most Honda twins. Includes hardware for other applications.
Yellow - AC from alternator
Pink - AC from alternator
Green - Ground
Red - Battery positive terminal
Black - Voltage sensing. +12V when ignition switch on.
